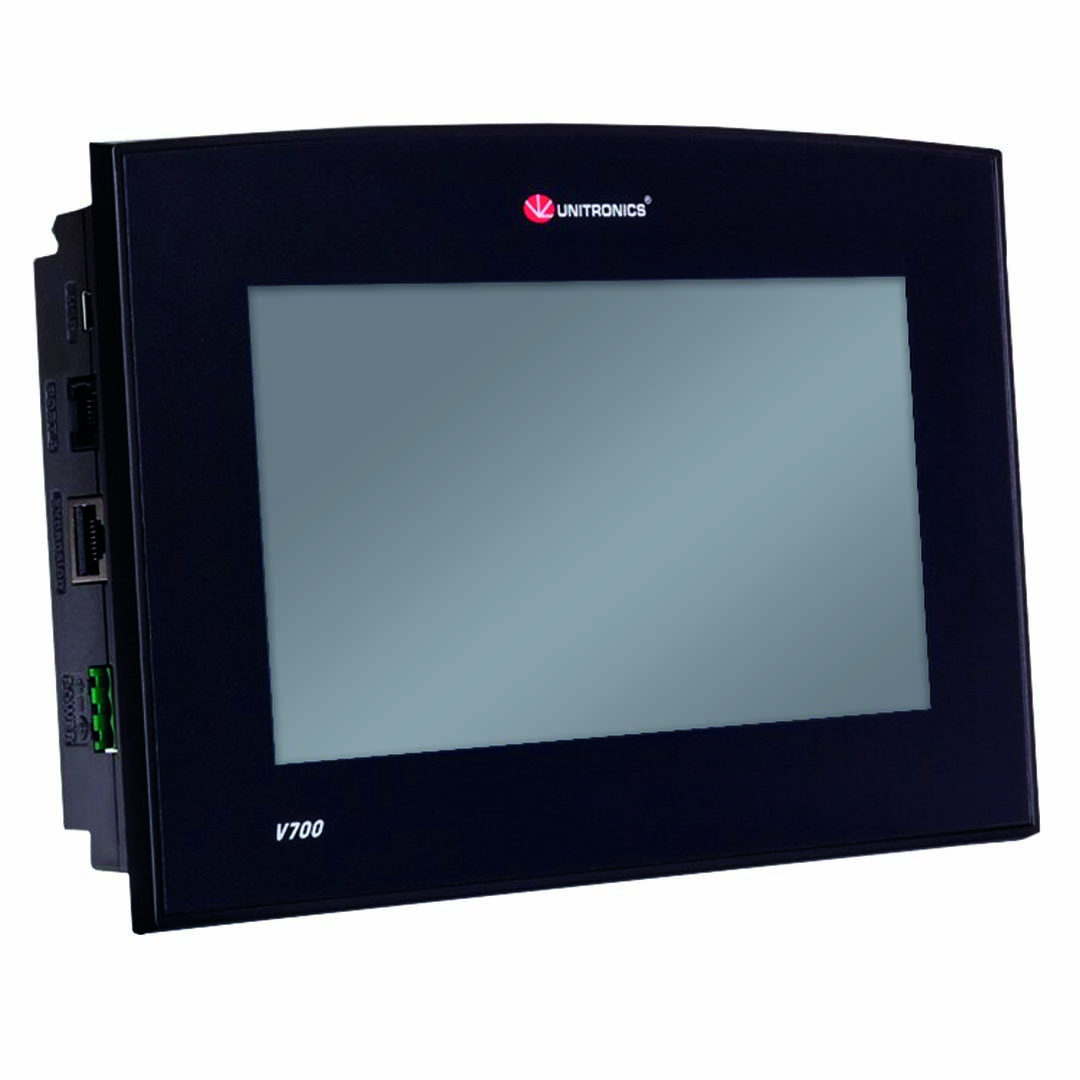

V700-T20BJ

Skip image gallery
- Display: 7" touchscreen
- Power supply: 12/24 V DC
- Expansion to up to 1000 I/Os with snap-in I/Os
- I/O options such as digital, analogue, high speed, temperature and weight measurement
- Communication: RS232 / RS485, TCP/IP

Current type DC
Nominal voltage 12 V-24 V

Back-up battery CR2450, 7 years typical at 25°C, battery back-up for RTC and system data, including variable data
Ingress Protection IP20 / NEMA1 (case), IP65 / NEMA4X (front panel)
Mounting Panel
Operating altitude 2000 m / 6562 ft
Operation temperature 0 … 50 °C
Relative huminity, no condensation 10 ... 95 % (non-condensing)
Storage temperature (no ice) -20 … 60 °C

Display 7” Touchscreen, TFT, LCD, resistive, analog, 65 536 (16 bit) colors
Number of definable displays 1024
Resolution 800 x 480 pixels (QVGA)

Execution time 9 µs / Kb
Memory card Micro SD-Card
Number of ladder code memory (virtual) 2000
Number of memory bits (coils) 8192
Number of memory integers (registers) 4096
Number of timers 384

Nominal voltage 12 … 24 V DC
Operating voltage range 10.2 … 28.8 V DC

Approvals CE,cULus,UKCA,EAC
Standards IEC 60068-2-27,IEC 60068-2-6
