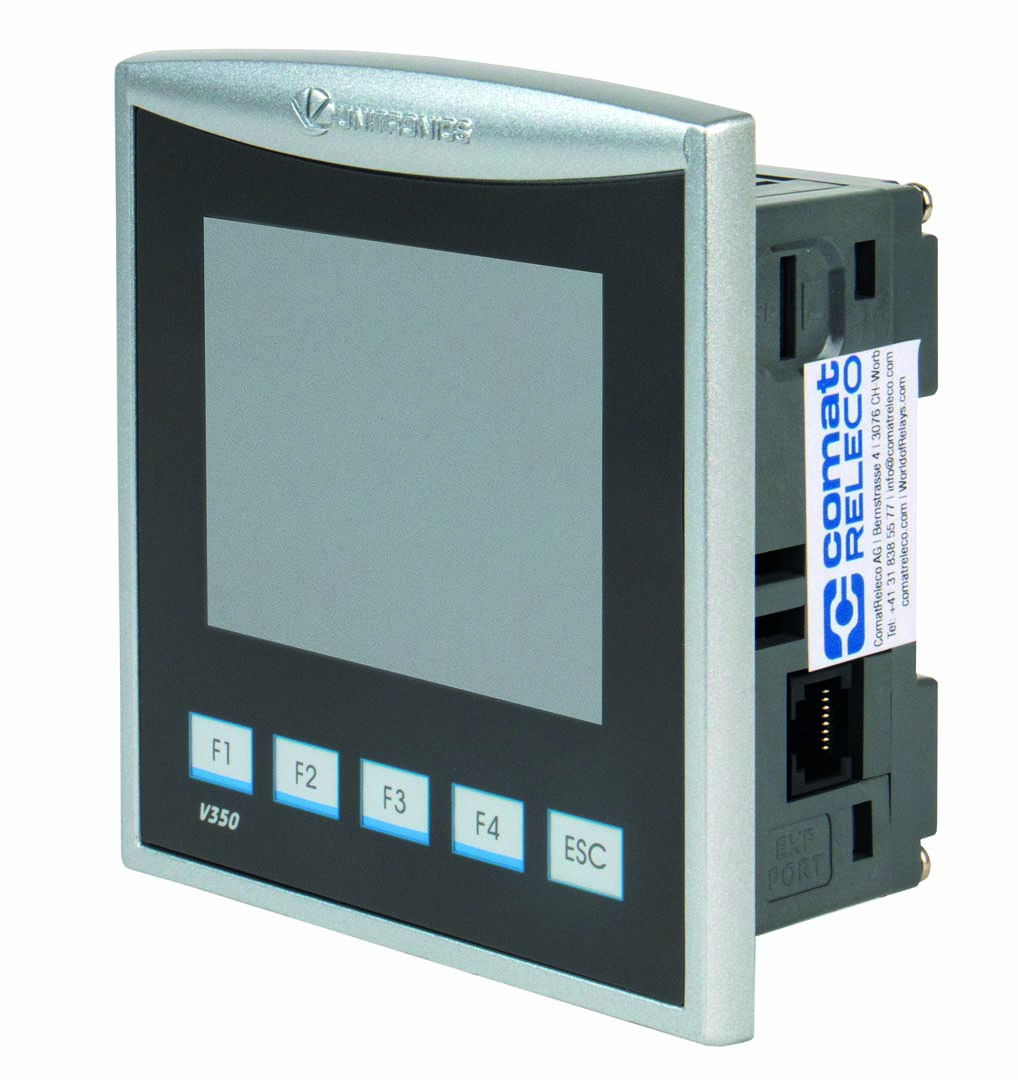

V350-35-R34

- Display: 3.5" touchscreen
- Power supply: 12...24 V DC
- Digital inputs: 20
- Digital/analogue inputs: 2
- Relay outputs: 12
- Communication: RS232 / RS485 / CAN

Current type	DC
Nominal voltage	24 V

Back-up battery	CR2450, 7 years typical at 25 °C, battery back-up for RTC and system data, including variable data
Ingress Protection	IP 20 / NEMA1 (DIN rail mounted), IP 65 / NEMA4X (Panel mounted)
Mounting	DIN rail, Panel with brackets
Operating altitude	Max. 2 000 m / 6 562 ft
Operation temperature	0 … 50 °C / 32 ... 122 °F
Relative huminity, no condensation	10 ... 95 %
Storage temperature (no ice)	-20 … 60 °C / -4 ... 140 °F

Display	3.5” touchscreen, TFT, LCD, resistive, analog, 65 536 (16 bit) colors
Number of definable displays	1024
Number of keys	5
Resolution	320 x 240 pixels

Number of analog inputs*	2
Number of digital inputs	22
Number of encoder inputs*	3

Execution time	15 µs / Kb
Memory card	Micro SD-Card
Number of ladder code memory (virtual)	1000
Number of memory bits (coils)	8192
Number of memory integers (registers)	4096
Number of timers	384

Number of relay outputs	12

Nominal voltage	12 … 24 V DC
Operating voltage range	10.2 … 28.8 V DC

Approvals	CE,cULus,EAC,UKCA
Standards	IEC 60068-2-27,IEC 60068-2-6
