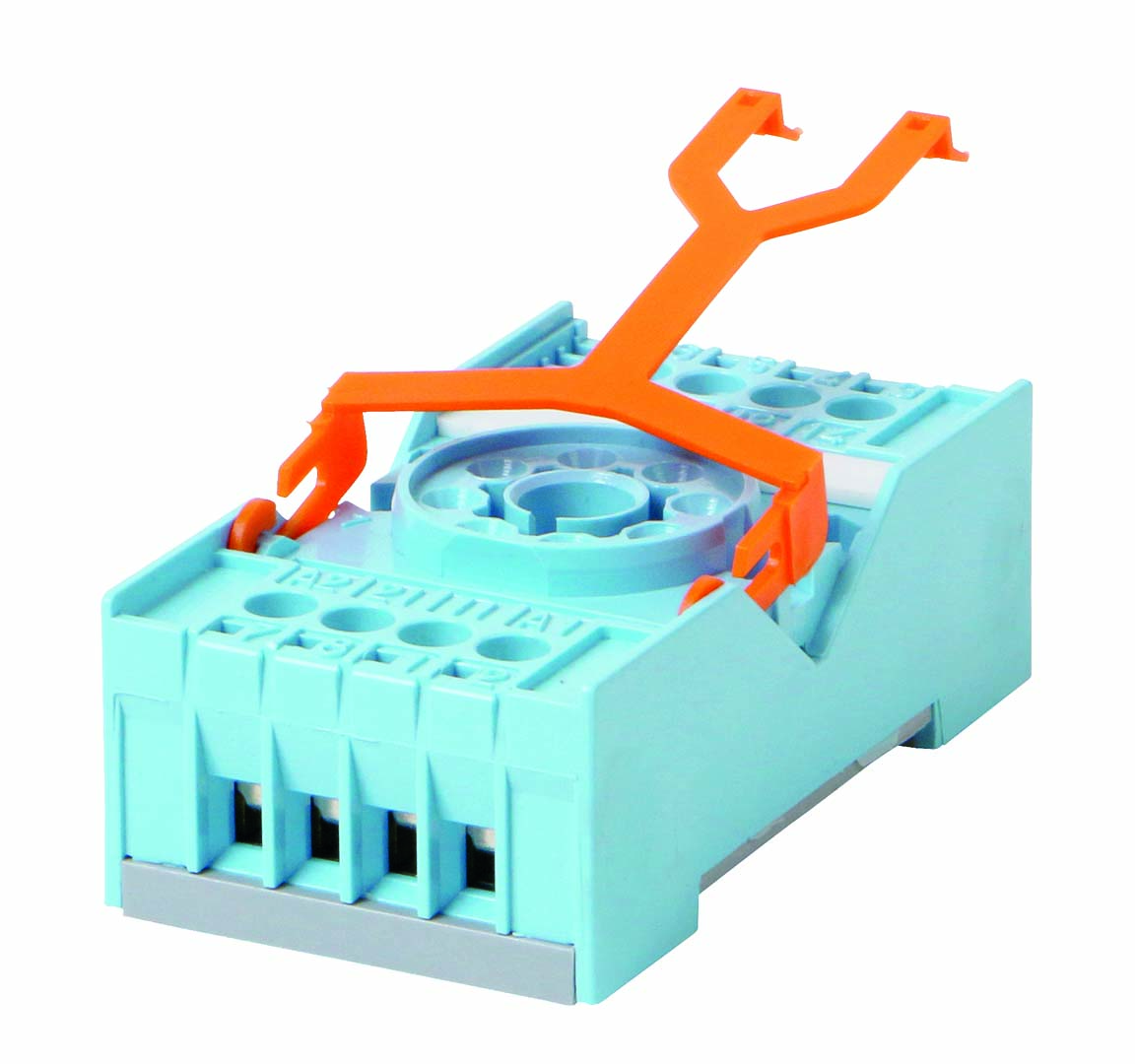

S2-B

- 10 A @ 380 V
- screw terminal

ELDAS®: 505794000

The S2-B socket is the matching socket for relays of the C2 Series. It features screw terminals and an integrated compartment for a CT2 timing module, enabling additional timing functions to be implemented easily.

- All terminals / DIN rail	2.5 kV rms / 1 min
- Terminal / terminal	2.5 kV rms / 1 min
- Single wire	4 mm² / AWG 12 or 2 x 2.5mm² / AWG 14
- Multi wire (un-crimped)	0.34 mm² / AWG 22 … 2.5 mm² / AWG 14
Operation temperature	-40 … 60 °C
Housing material	PA / PC
Weight	48 g
Storage temperature (no ice)	-40 … 80 °C
Conductor cross section	‎
Mounting	TH35 (EN 60715) or back panel mounting
Nominal screw torque	0.7 Nm
Rated load	10 A / 380 V
Screw Dimension	M3 Pozi slot

Approvals	UKCA,CE,cURus,EAC,LR,CSA
Standards	EN 60664-1

3D-models "S2-B"

S18-M / STEP file
S2-B_DrillPlan.zip / DXF file
S2-B_DrillPlanPDF.PDF
