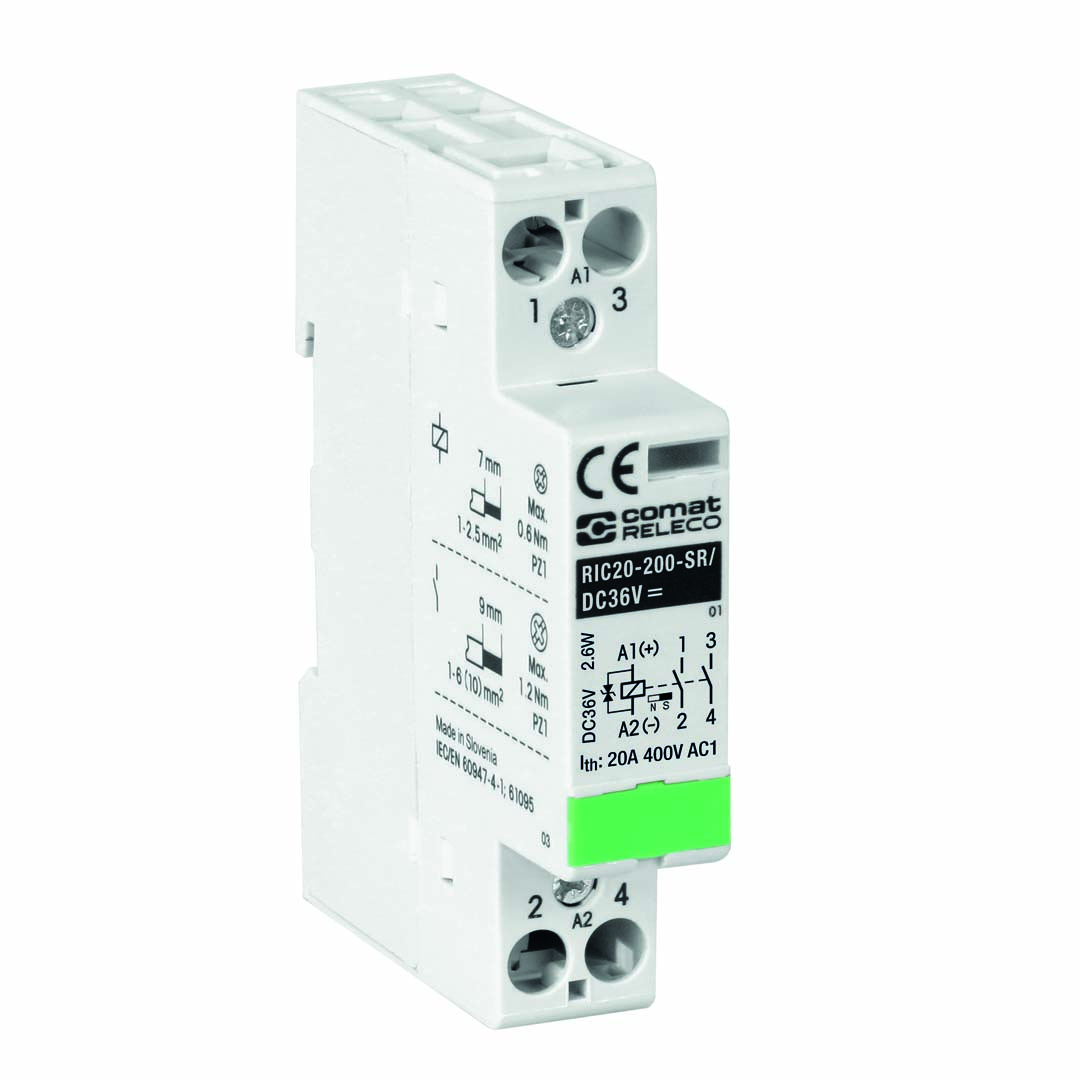

RIC20-200-SR/DC36V
RIC installation contactors are versatile electromagnetic switching devices designed to reliably switch various types of electrical loads, such as lighting systems, heating, air conditioning, motors, or pumps. They have a rest position and can safely switch, conduct, and interrupt currents under normal operating conditions, as well as in overload situations. The double-break contacts interrupt the circuit at two points simultaneously, reducing contact wear, improving arc suppression during switching, and thus ensuring a particularly long service life.
| Current type | DC |
|---|---|
| Nominal voltage | 36 V |
| Breakdown voltage | VnomMin breakdown voltage @It=1 mAMax breakdown voltage @It=1 mA24 Vnom40.0 V44.5 V36 Vnom60.0 V66.4 V 72 Vnom122.0 V135.0 V110 Vnom 178.0 V197.0 V |
|---|---|
| Operating voltage range | 0.70 ... 1.25 UN |
| Pick-up time | 15 ... 45 ms |
| Pick-up voltage | ≤ 0.70 UN |
| Power consumption DC | 2.6 W |
| Release time | 20 ... 50 ms |
| Release voltage | ≥ 0.1 UN |
| TVS Diode failure mode | defined short cut |
| TVS Diode type | Bidirectional surge TVS |
| Housing material | PA 66 |
|---|---|
| Ingress Protection | IP 20 |
| Mounting | DIN rail |
| Mounting position | see installation instructions |
| Operation Altitude | Max. 2 000 m |
| Operation temperature | -40 ... 70 °C |
| Relative huminity, no condensation | 95 % |
| Spacer | Integrated |
| Storage temperature (no ice) | -40 ... 80 °C |
| Weight | 135 g |
| Clearance of open contact | 3.6 |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage open contact | 4 kV / 1 min |
| Rated insulation voltage | 440 V |
| Contact materials | AgNi |
|---|---|
| Electrical endurance at rated load AC-1 (cycles) | ≥ 150 000 |
| Electrical endurance at rated load AC-3 (cycles) | ≥ 200 000 |
| Electrical endurance at rated load DC-1 (cycles) | ≥ 200 000 |
| Electrical endurance at rated load DC-5 (cycles) | ≥ 300 000 |
| Inrush current | 50 A, 100 ms / 180 A, 300 µs |
| Mechanical endurance (cycles) | ≥ 10 000 000 |
| Rated current AC-1 | 20 A |
| Rated load AC-1 | 7 kW |
| Rated load AC-3 | 1.3 (NO) / 0.75 (NC) kW |
| Rated voltage | 230 V AC |
| Recommended minimum contact load | 50 mA, 17 V |
| Switching frequency at rated load AC-1 (cycles / h) | ≤ 600 |
| Switching frequency at rated load AC-3 (cycles / h) | ≤ 600 |
| Switching frequency at rated load DC-1 (cycles / h) | ≤ 300 |
| Switching frequency at rated load DC-5 (cycles / h) | ≤ 300 |
| Approvals | CE,EAC,UKCA,Railway |
|---|---|
| Railway | EN 50155,EN 45545-2 |
| Standards | IEC/EN 60947 |
| Conductor cross section control / main circuit | 2.5 mm2 / 6 mm2, use copper conductors only |
|---|---|
| Contact type control / main circuit | Screw connection, M3 / M3.5 |
| Dual sleeve control / main circuit | 1 |
| Max. wire count control / main circuit | 1 |
| Nominal screw torque control / main circuit | 0.6 Nm / 1.2 Nm |
| Screwdrive control / main circuit | PZ1 / PZ1 |
| Stripping Length control / main circuit | 7 mm / 9 mm |
